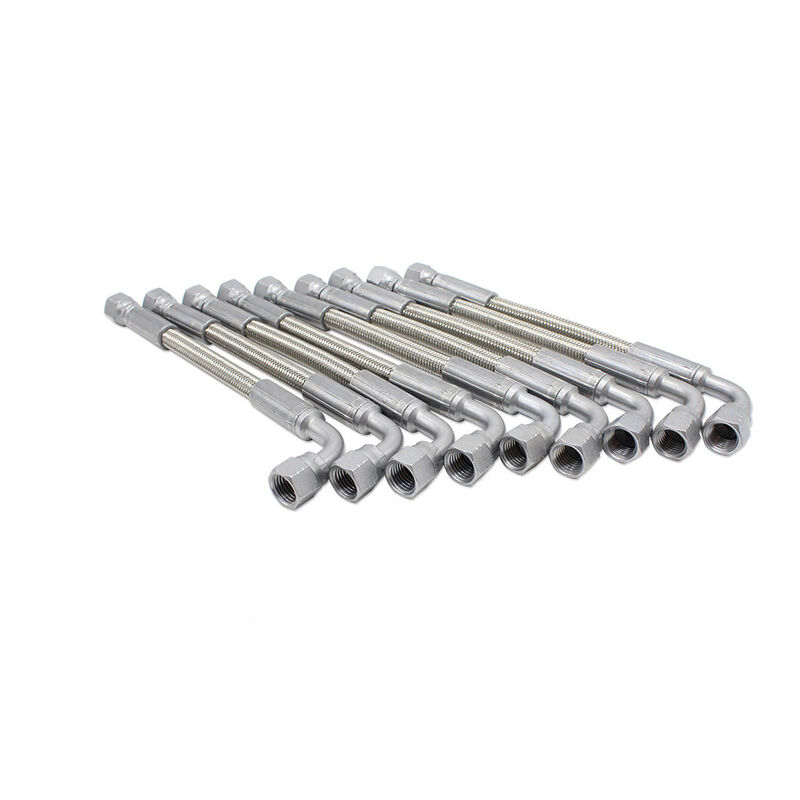

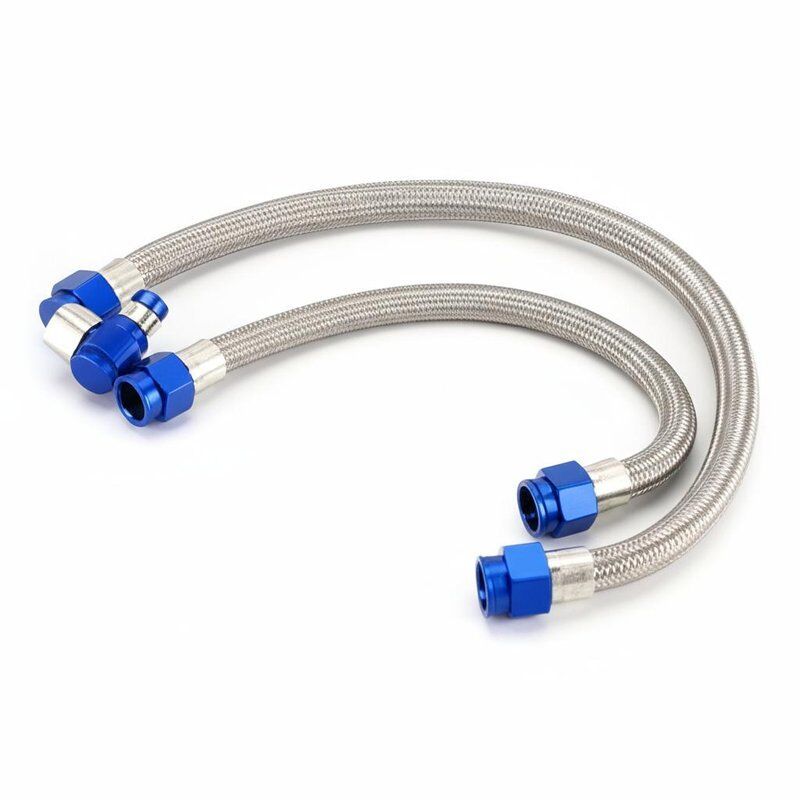

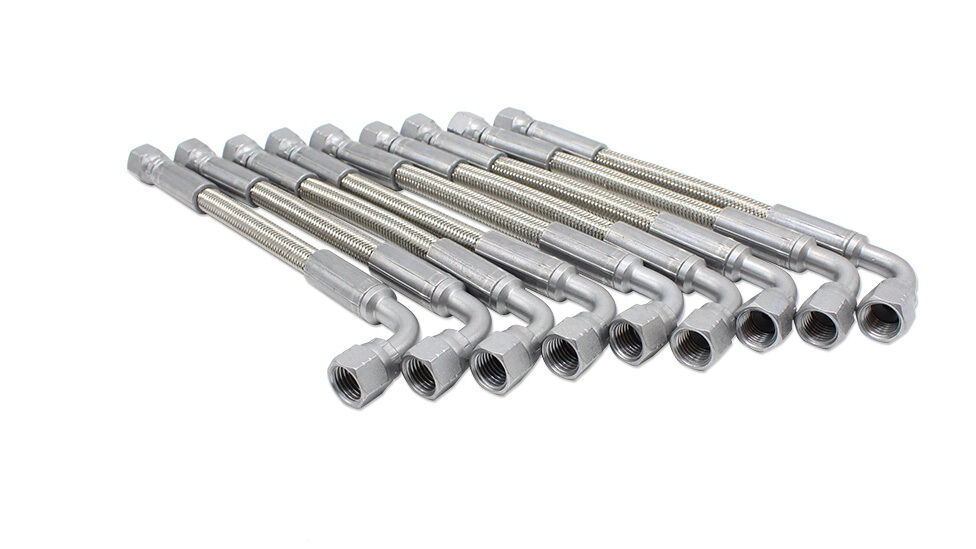

Stainless Steel Braid PTFE Turbo Oil Pipe Assembly with High Temperature Resistance and Customization Options

Stainless Steel Braid PTFE Turbo Oil Pipe Assembly

High Temperature Resistance PTFE Braided Hose

Customization Options PTFE Steam Hose

Tempat asal:

Zhejiang

Nama merek:

Paishun

Nomor model:

PTFE

Hubungi kami

Permintaan Penawaran

Stainless Steel Braid PTFE Turbo Oil Pipe Assembly with High Temperature Resistance and Customization Options

Rincian Produk

Nomor Model:

PTFE Hose, SAE 100R14

Bahan:

PTFE

Ban dalam:

PTFE halus diekstrusi

Suhu:

-60℃ ~ +260℃

Bp:

718bar-195bar

Sedang mengemas:

strip anyaman, palet, karton

Pasar Selang PTFE:

Amerika Utara, Eropa, Amerika Selatan

PENGENAL:

1/8" ~ 1"

Menutupi:

SS 304 kepang kawat tunggal

WP:

179.5bar-48.8bar

Opsi Kustomisasi:

Warna, panjang, perlengkapan ujung, bahan kepang, dll.

Perlengkapan:

OEM

Menyoroti:

Stainless Steel Braid PTFE Turbo Oil Pipe Assembly

High Temperature Resistance PTFE Braided Hose

Customization Options PTFE Steam Hose

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

200m

Harga

Dapat dinegosiasikan

Kemasan rincian

Tenunan, palet, karton, dll. Kami juga dapat membuat paket sesuai dengan kebutuhan Anda.

Waktu pengiriman

dalam waktu 25 hari setelah kami menerima pembayaran lanjutan

Syarat-syarat pembayaran

L/C,D/A,T/T,D/P

Menyediakan kemampuan

300000m/bulan

Produk-produk terkait

Stainless Steel Braid PTFE Turbo Oil Pipe Assembly with High Temperature Resistance and Customization Options

Dapatkan Harga Terbaik

Selang Transfer Uap PTFE Tekanan Tinggi untuk Sistem Setrika Komersial

Dapatkan Harga Terbaik

Selang Uap PTFE Fleksibel untuk Peralatan Setrika Industri Besar

Dapatkan Harga Terbaik

video

Rangkaian selang PTFE tahan kimia untuk sistem transfer cairan laboratorium

Dapatkan Harga Terbaik

Hubungi kami

Hubungi sekarang

Deskripsi Produk

High Performance PTFE Steam Hose for Industrial Ironing & Laundry Systems

Name: Stainless Steel Braid PTFE Turbo Oil Pipe Assembly with High Temperature Resistance and Customization Options
Brand: Hangzhou Paishun Rubber & Plastic Co., Ltd
SKU: PTFE
Price: 15.29 USD
Availability: InStock

Product Overview

This PTFE steam hose is engineered for demanding commercial ironing and industrial laundry applications. Featuring a smooth PTFE inner tube and stainless steel wire reinforcement, it delivers reliable steam transfer under extreme temperature and pressure conditions.

It is designed to provide stable, safe, and long-term operation for continuous steam systems.

Hose Construction

Inner Tube
Smooth bore PTFE, offering superior heat resistance, chemical stability and low friction steam flow.

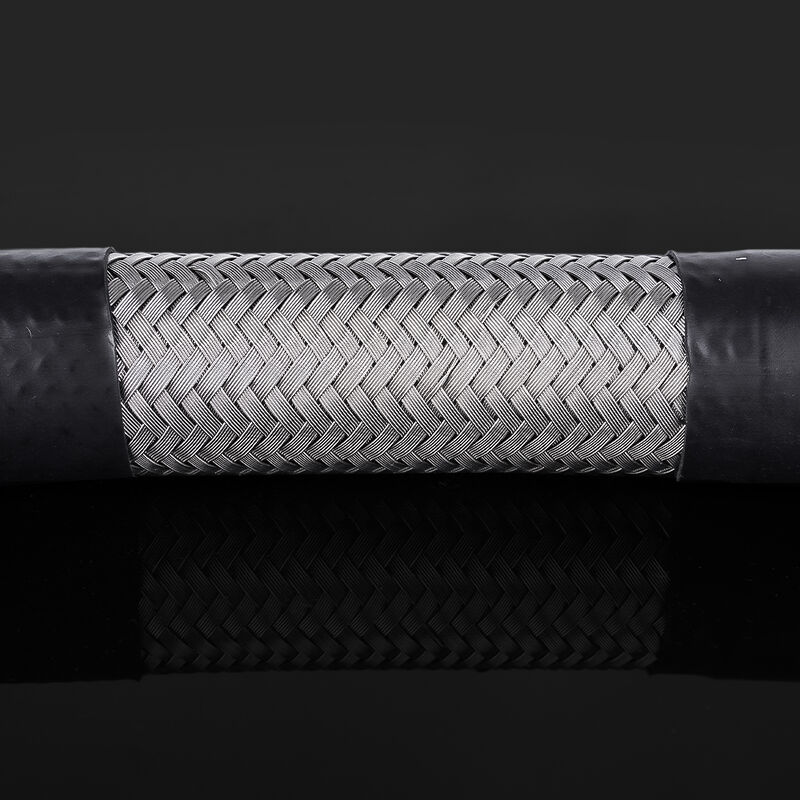

Reinforcement
High-tensile stainless steel wire braid (SS304 or SS316 available) for enhanced pressure performance and mechanical strength.

Outer Layer
Exposed stainless steel braid for abrasion resistance, corrosion protection and long service life.

Technical Specification

Material: PTFE inner tube with stainless steel braided reinforcement
Operating Temperature: –65°C to +260°C
Standard: SAE 100R14
Optional Feature: Carbon-treated PTFE for anti-static performance
Media: High temperature steam, air, chemicals, gases and aggressive fluids

Size & Pressure Data

Part No.	Size	I.D. (mm)	O.D. (mm)	Min. Bend Radius (mm)	Working Pressure (bar)	Burst Pressure (bar)
PR14-02	1/8"	3.2	6.7	16	250	1000
PR14-03	3/16"	5.0	7.6	20	205	820
PR14-04	1/4"	6.5	9.4	27	188	752
PR14-05	5/16"	8.0	11.1	27	162	648
PR14-06	3/8"	10.0	13.2	33	130	520
PR14-08	1/2"	13.0	16.2	66	112	448
PR14-10	5/8"	16.3	19.4	150	80	320
PR14-12	3/4"	19.0	23.0	226	70	280
PR14-14	7/8"	22.5	26.2	245	60	240
PR14-16	1"	25.4	29.8	300	50	200

Key Advantages

Extreme Heat Capability

PTFE tubing maintains performance in continuous high-temperature steam environments without softening, cracking or degradation.

High Pressure Safety

The stainless steel braid provides reliable pressure resistance, ensuring safe operation in industrial steam systems.

Excellent Flexibility

Despite its strength, the hose remains lightweight and easy to route in tight or moving installations.

Low Flow Resistance

The smooth PTFE inner surface minimizes friction, allowing efficient steam transfer and preventing internal buildup.

Long-Term Durability

PTFE resists aging, corrosion and chemical attack, significantly extending hose service life.

Anti-Static Option

Carbon-loaded PTFE liner can be supplied to reduce electrostatic charge for enhanced safety.

Stainless Steel Braid PTFE Turbo Oil Pipe Assembly with High Temperature Resistance and Customization Options 0

Typical Applications

Industrial steam pressing machines
Commercial laundry ironing equipment
Garment finishing and textile processing lines
Central steam distribution pipelines
High-temperature steam and gas transfer systems
