Name: High Pressure PTFE Steam Transfer Hose for Commercial Ironing Systems
Brand: Hangzhou Paishun Rubber & Plastic Co., Ltd
SKU: SAE 100R14
Price: 15.29 USD
Availability: InStock

Rumah > Produk > Selang Jalinan PTFE >

High Pressure PTFE Steam Transfer Hose for Commercial Ironing Systems

Tempat asal:

Cina

Nama merek:

PASSIONCOHOSE

Sertifikasi:

ISO 9001-2015, CE, RoSH, REACH, FDA

Nomor model:

SAE 100R14

Hubungi kami

Permintaan Penawaran

High Pressure PTFE Steam Transfer Hose for Commercial Ironing Systems

Rincian Produk

Nomor model:

PTFE Hose, SAE 100R14

Pasar Selang PTFE:

Amerika Utara, Eropa, Amerika Selatan

Bahan:

PTFE

PENGENAL:

1/8" ~ 1"

Ban dalam:

PTFE halus diekstrusi

Menutupi:

SS 304 kepang kawat tunggal

Suhu:

-60℃ ~ +260℃

WP:

179.5bar-48.8bar

Bp:

718bar-195bar

Opsi Kustomisasi:

Warna, panjang, perlengkapan ujung, bahan kepang, dll.

Sedang mengemas:

strip anyaman, palet, karton

Perlengkapan:

OEM

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

200m

Harga

Dapat dinegosiasikan

Kemasan rincian

Tenunan, palet, karton, dll. Kami juga dapat membuat paket sesuai dengan kebutuhan Anda.

Waktu pengiriman

dalam waktu 25 hari setelah kami menerima pembayaran lanjutan

Syarat-syarat pembayaran

L/C ,, T/T, Western Union, Moneygram

Menyediakan kemampuan

300000m/bulan

Produk-produk terkait

Flexible PTFE Steam Hose for Large Industrial Iron Equipment

Dapatkan Harga Terbaik

video

Rangkaian selang PTFE tahan kimia untuk sistem transfer cairan laboratorium

Dapatkan Harga Terbaik

video

Rakitan Selang PTFE dengan Ketahanan Suhu Tinggi dan Sifat Tahan Bahan Kimia untuk Aplikasi Anti-Statis

Dapatkan Harga Terbaik

Selang Bahan Bakar PTFE Anti-Statis untuk Sistem Sel Bahan Bakar Otomotif

Dapatkan Harga Terbaik

Hubungi kami

Hubungi sekarang

Deskripsi Produk

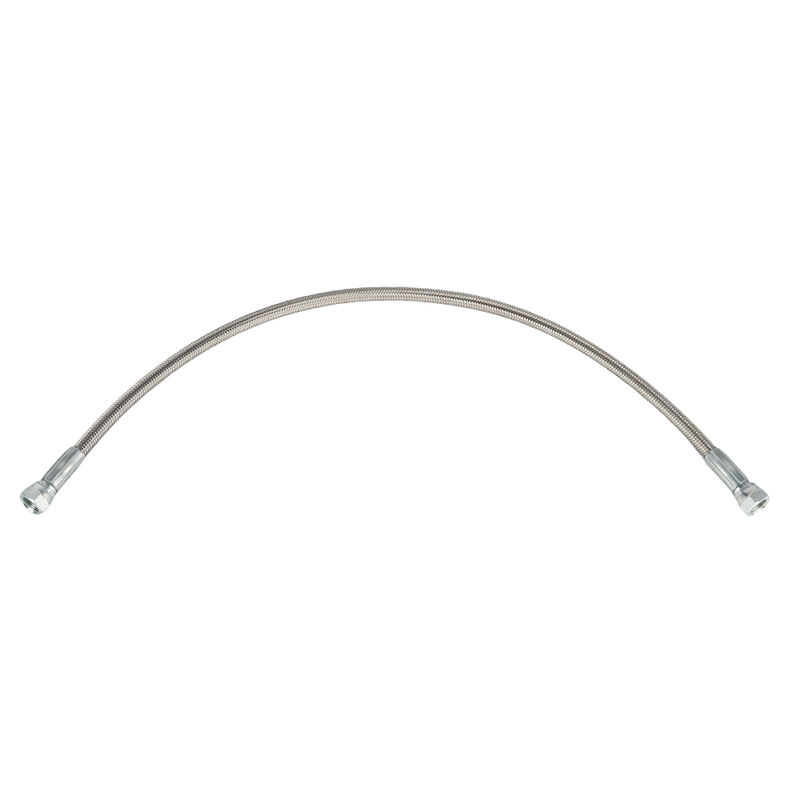

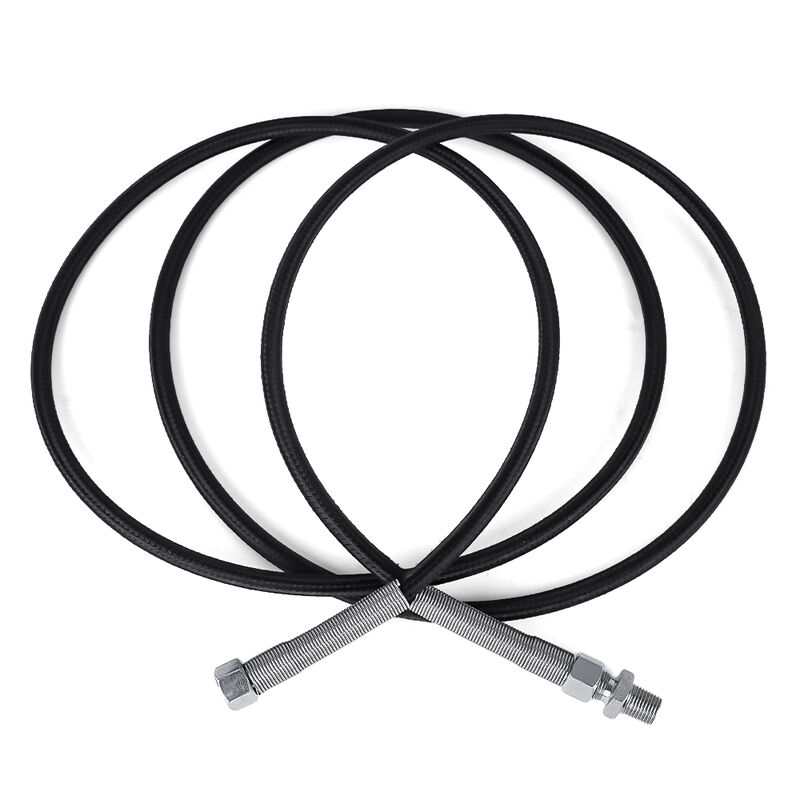

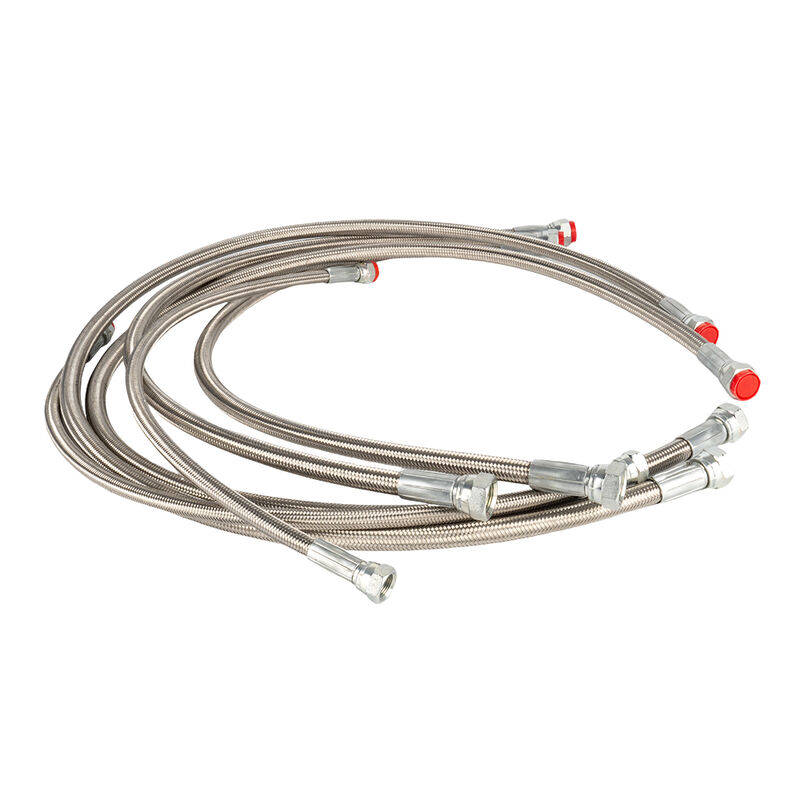

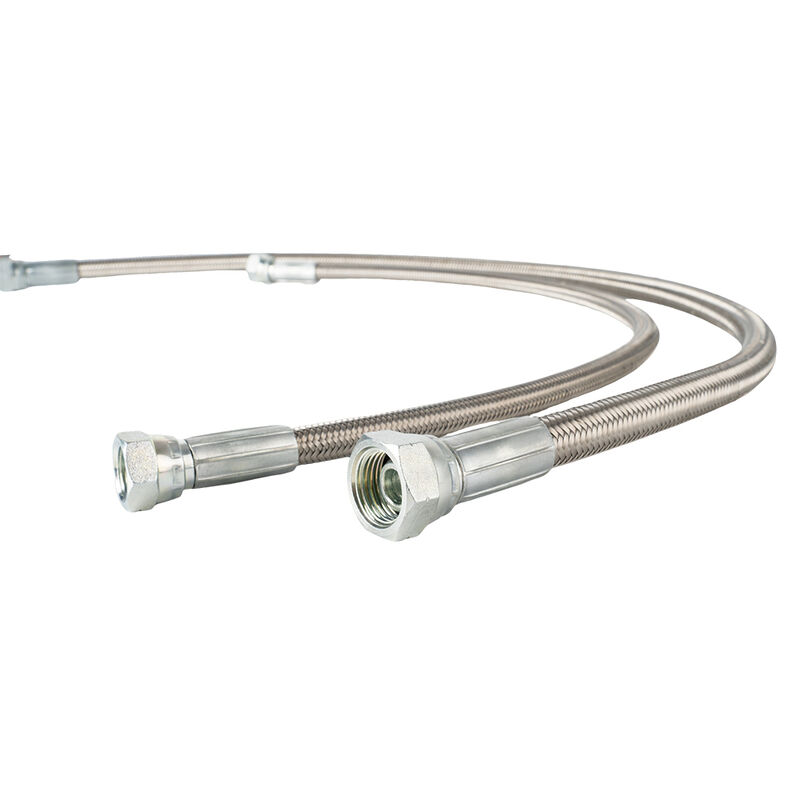

High Pressure PTFE Steam Transfer Hose for Commercial Ironing Systems

Description:

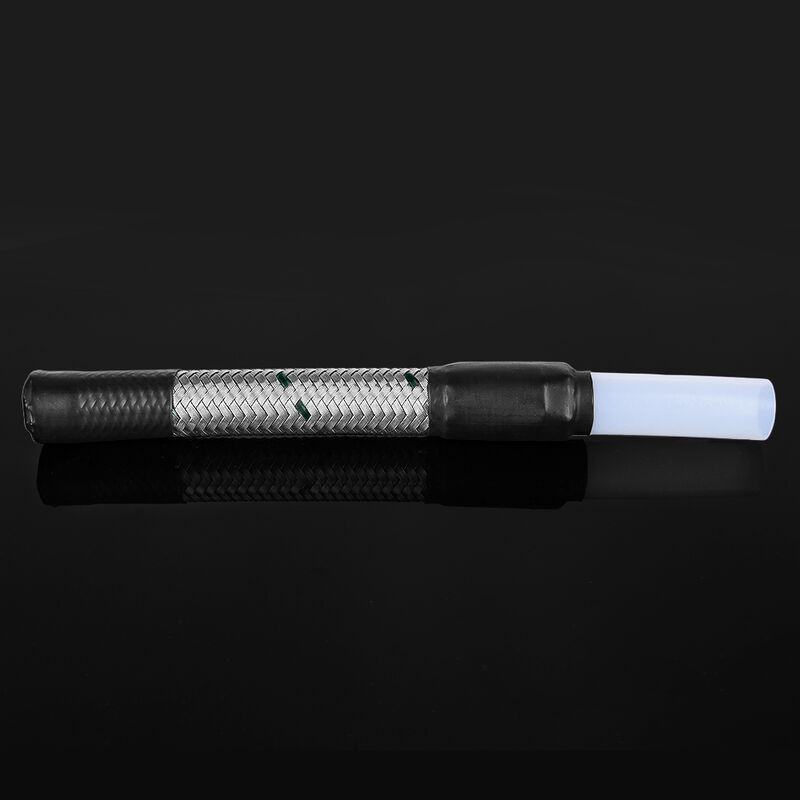

Smooth Bore Stainless Steel Braided PTFE Hoses

Inner tube: Smooth bore PTFE
Out Cover: Stainless Steel 304 or 316 Wire Braided
Temperature Range: -65℃ ~ +260℃
Standard: SAE 100R14
Feature: Excellent chemical resistance, high and low temperature resistance, excellent corrosion resistance, non-stick surface, flexibility, high purity, electrical insulation.

All braided PTFE hoses can increase Anti-Static performance with carbon treatment.

Part-number	Inner Diameter	I.D. (mm)	O.D. (mm)	Bending Radius (mm)	Min.W.P (bar)	Min. B.P. (bar)
PR14-02	1/8"	3.2	6.7	16	250	1000
PR14-03	3/16"	5.0	7.6	20	205	820
PR14-04	1/4"	6.5	9.4	27	188	752
PR14-05	5/16''	8.0	11.1	27	162	648
PR14-06	3/8''	10.0	13.2	33	130	520
PR14-08	1/2''	13.0	16.2	66	112	448
PR14-10	5/8"	16.3	19.4	150	80	320
PR14-12	3/4''	19.0	23.0	226	70	280
PR14-14	7/8"	22.5	26.2	245	60	240
PR14-16	1''	25.4	29.8	300	50	200

Excellent High Temperature Resistance
Made of premium PTFE material, suitable for continuous steam transfer under high temperature working conditions.
High Pressure Performance
Designed to handle high-pressure steam used in large industrial ironing and laundry equipment.
Flexible & Lightweight
Highly flexible PTFE hose allows easy installation and movement, even in compact or complex ironing systems.
Smooth Inner Surface
Non-stick inner bore ensures smooth steam flow, reduces pressure loss and prevents scaling.
Long Service Life
PTFE material provides outstanding aging resistance, ensuring stable performance and long-term use.
Optional Stainless Steel Braiding
Available with stainless steel braided reinforcement for enhanced pressure resistance and safety.

Application:

Industrial steam ironing machines
Large commercial steam irons
Industrial laundry and garment finishing equipment
Central steam supply systems for ironing lines
High temperature steam conveying systems in factories
